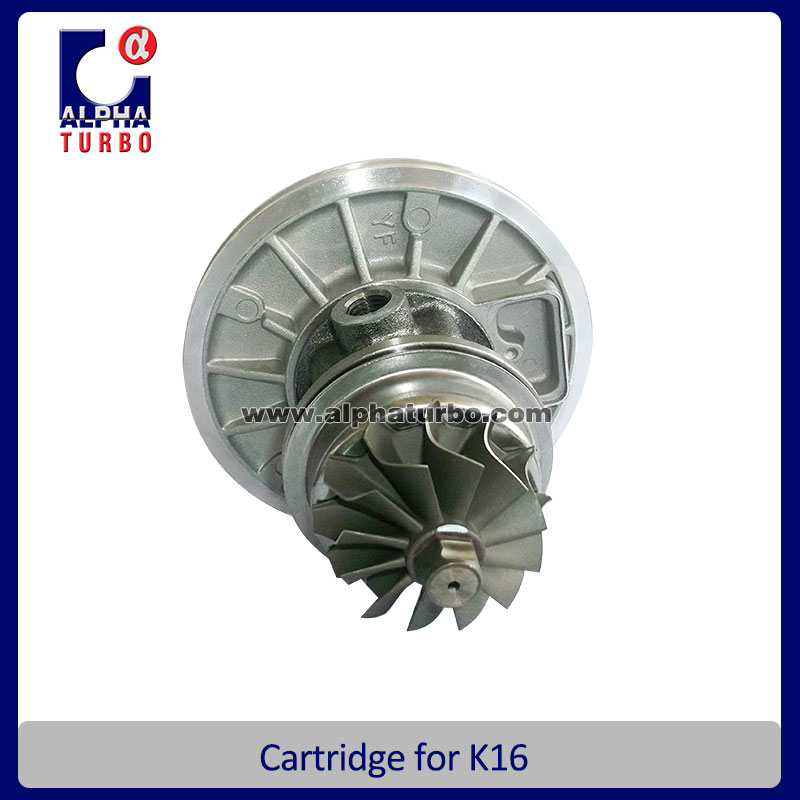

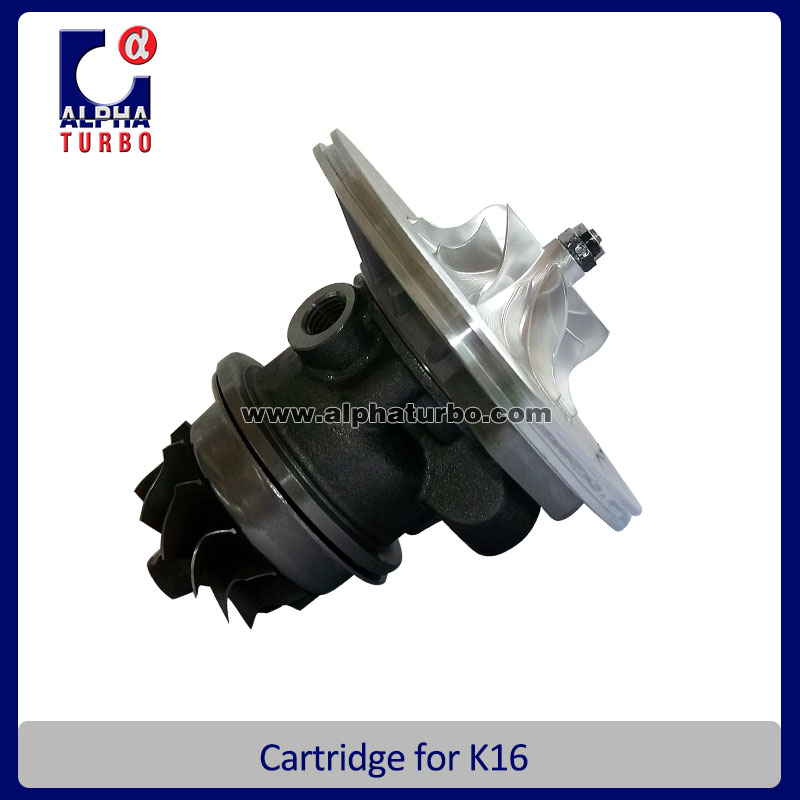

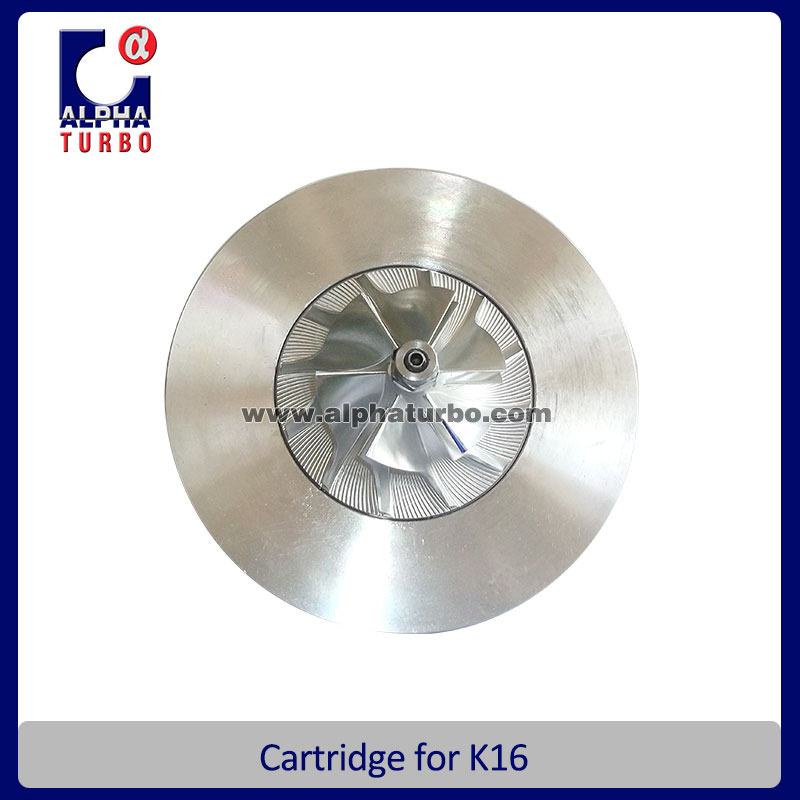

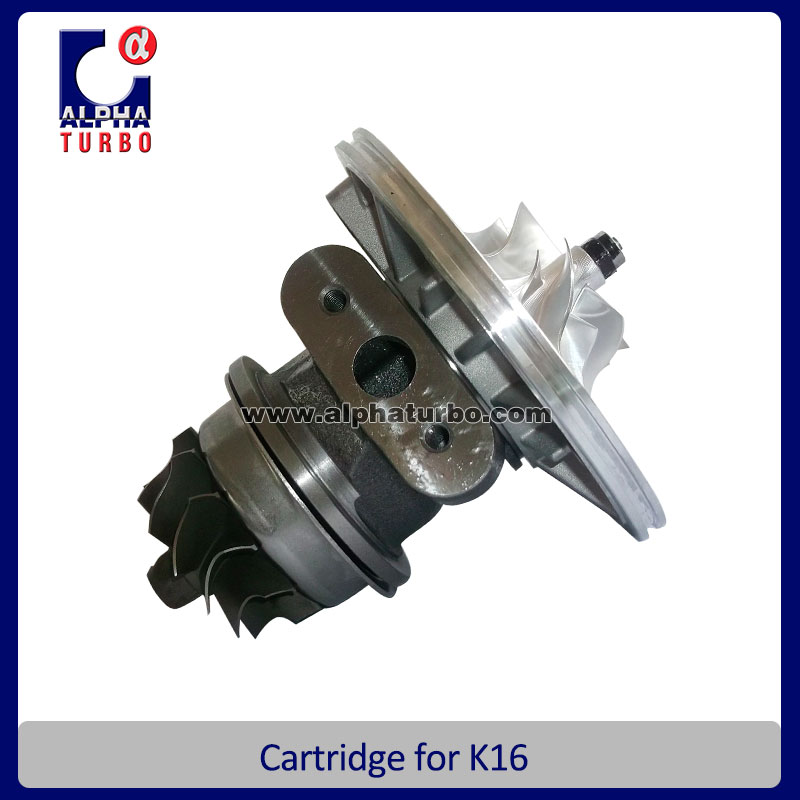

turbo turbocharger cartridge CHRA K16 53169707107 53169707025 53169707021
- TYPE.：
- Cartridge/CHRA
- OEM NO.：
- 9040967199 A9040963599 9040969099 A9040969099 9000961099 A9000961099 9040964199 A9040964199
- PART NO.：
- 53169887198
- ENGINE：
- OM904LA-EPA OM904LA-EPA98
- Model Number：
- K16-2471OYCKB5.82GAAWD
- Car Make:
- bmw
| Part Number | 53169887198 |
| Previous Version | 5316-988-7198, 5316 988 7198, 53169887021, 53169887021, 53169887025, 53169887025, 53169887107, 53169887107, 53169887119, 53169887119, 53169887138, 53169887138 |
| OE number | 9040967199, A9040963599, 9040969099, A9040969099, 9000961099, A9000961099, 9040964199, A9040964199 |
| Year | 1998-07 |
| Manufacturer Part Number | 53169707119, 53169707138, 53169707107, 53169707025, 53169707021, 53169707198 |
| CHRA | 53167100529 (5316-710-0529) |
| Turbo Model | K16-2471OYCKB5.82GAAWD |
| Engine | OM904LA-EPA, OM904LA-EPA98 |
| Displacement | 4.25L, 4250 ccm |
| KW | 135/142/183 hp |
| RPM Max | 2300 |
| Bearing Housing | 53161500066 |
| Turbine Wheel | 53161205015/53161205020 |
| Comp. Wheel(milled titanium) | 53241232038/53241232100 |
| Back plate | 53241515714 |
| Heat shield Number | 53161009026 |
| Repair Kit | 53167110019 |
| Turbine Housing | 53161009026 |
| Compressor Cover | 53241013001/53241013011 |
| Actuator | 58201104114 |
| Turbine Housing AR | 5 |
| Replaced by | 53169887172 |
Every turbocharger passes dynamic balancing test, high speed
CHRA dynamic balancing test and functional test to garantee the
performance
