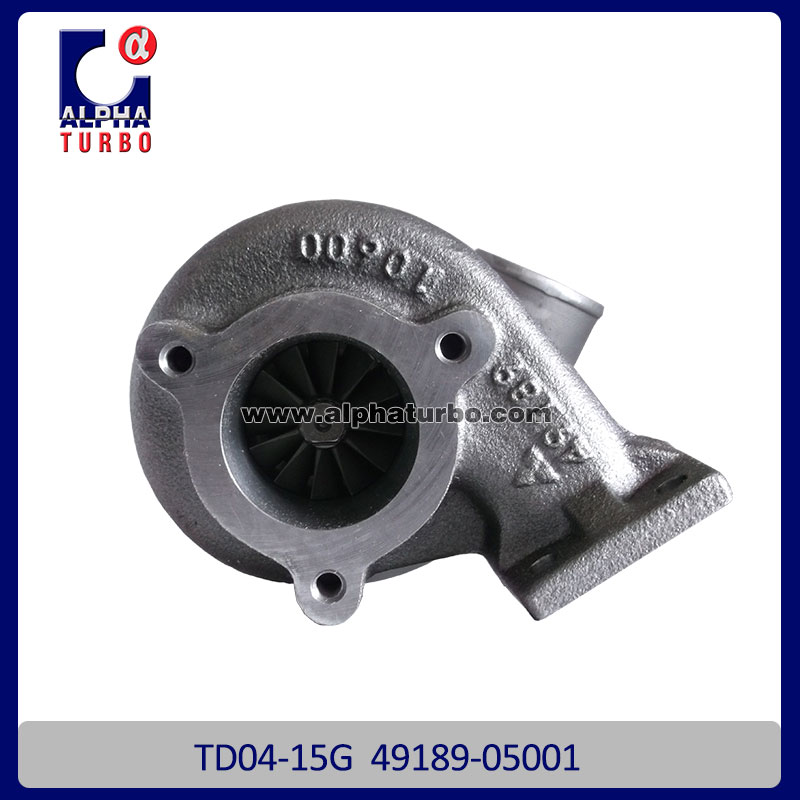

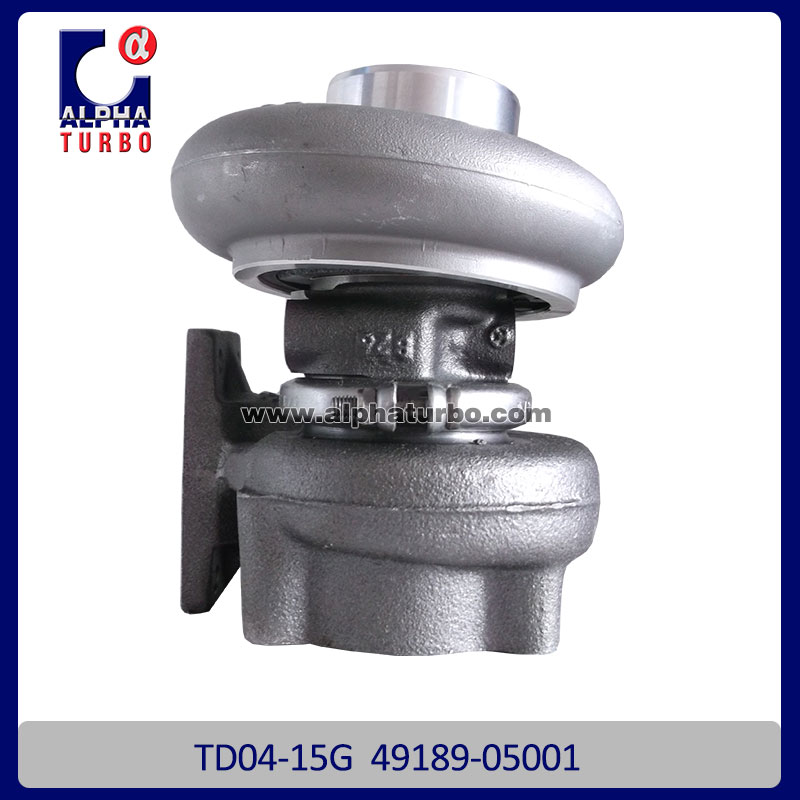

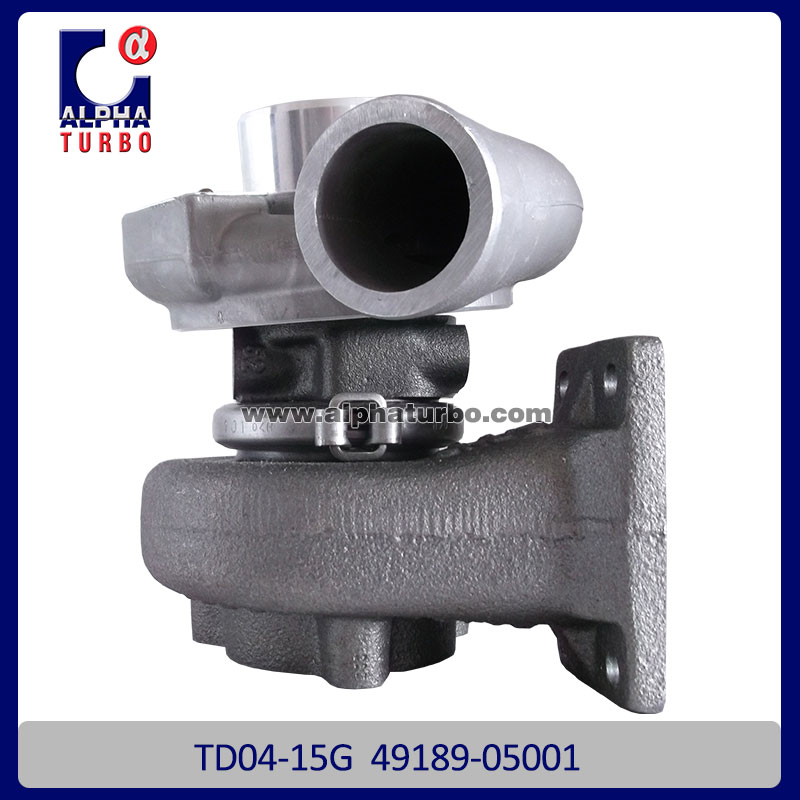

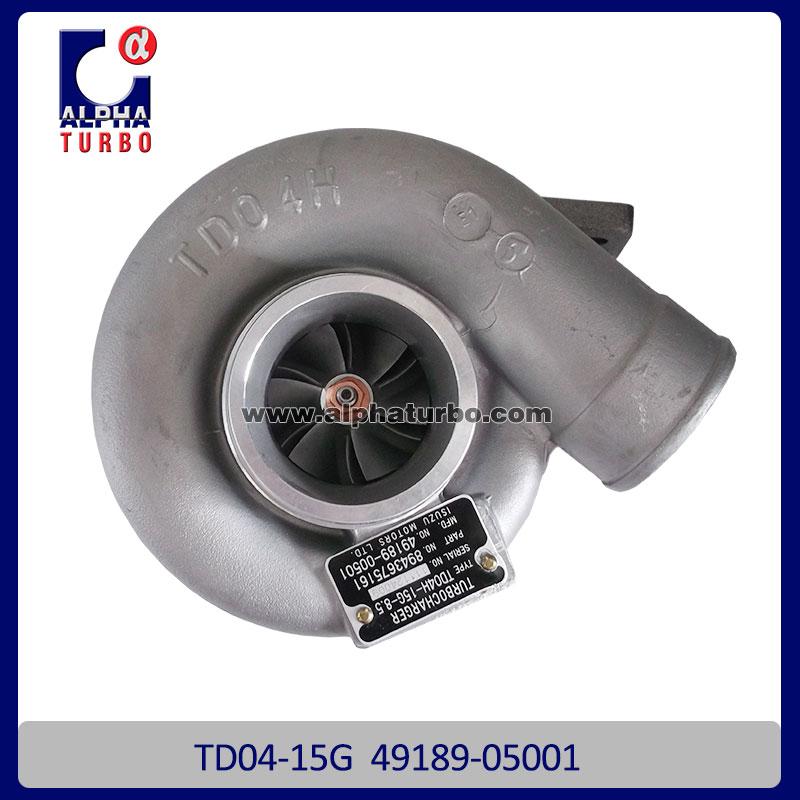

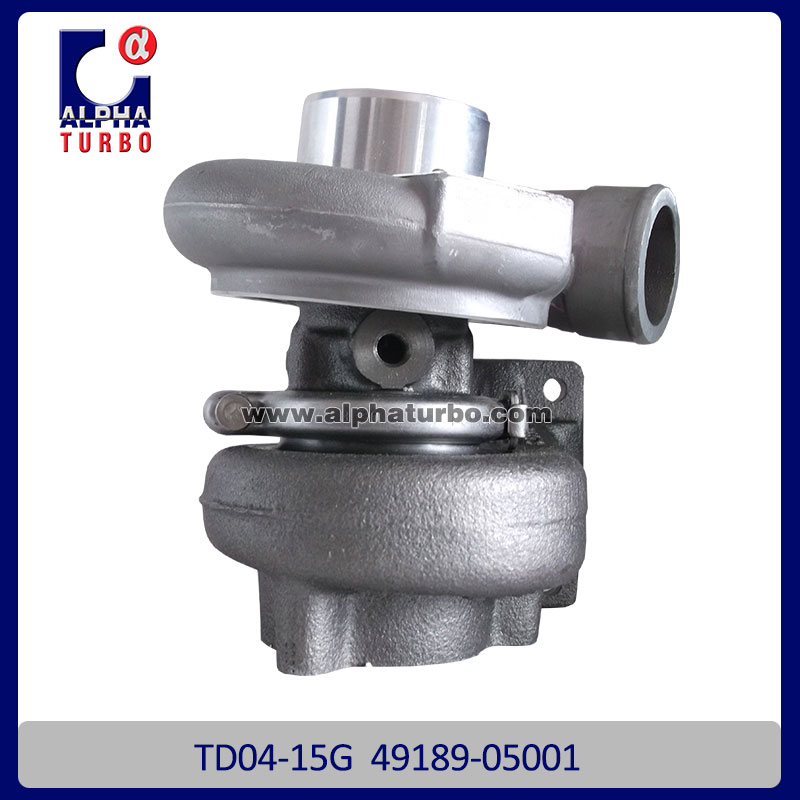

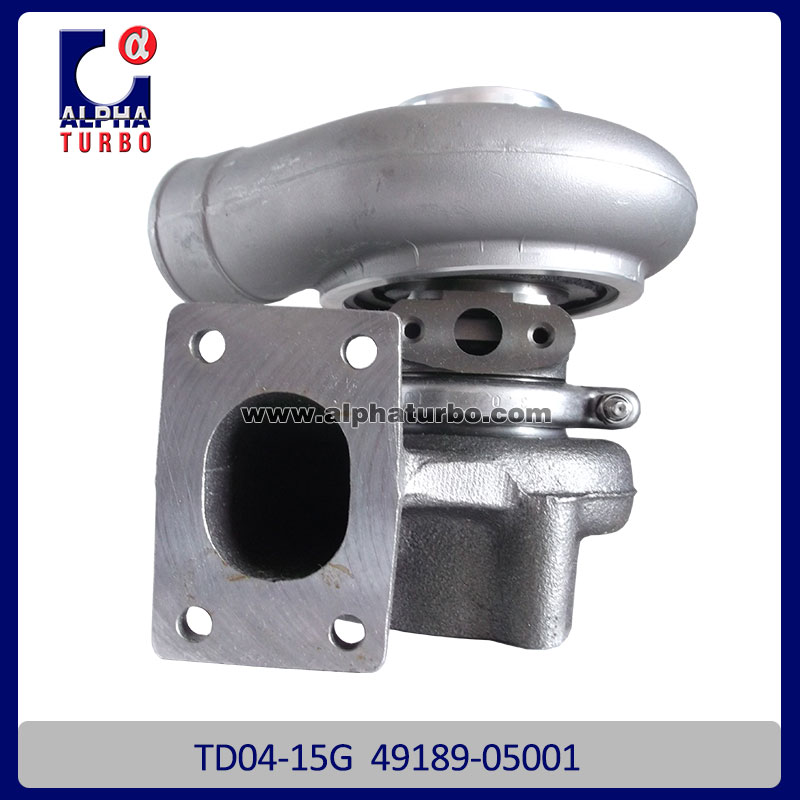

Turbocharger 49189-00501 TDO4HL-15G/8.5 4.3L 4300 ccm
- TYPE.：
- ISUZU
- OEM NO.：
- 4918900501/8943675161
- PART NO.：
- 49189-00501
- ENGINE：
- SK120-5 4BD1T 4BD1
- Model Number：
- TDO4HL-15G/8.5
- Car Make:
- Isuzu
| Part Number | 49189-00501 |
| Previous Version | 4918900501 |
| OE number | 4918900501, 8943675161, 8943675161A, 8-94367-516-1 |
| Description | Earth Moving ISUZU, Sk120-3, SK120, Hitachi EX120 |
| CHRA | 49189-08100 |
| Turbo Model | TDO4HL-15G/8.5 |
| Engine | SK120-5, 4BD1T, 4BD1 |
| Displacement | 4.3L, 4300 ccm |
| Model | EX120-2/3 |
| Fuel | Diesel |
| Bearing Housing | 49189-20110/49189-26400 |
| Turbine Wheel | 49189-30100 |
| Comp. Wheel | 49189-40300 |
| Blade Count | 6+6 |
| Exducer Diameter | 56 MM |
| Inducer Diameter | 43.4 MM |
| Repair Kit | 49189-84000 |
| Turbine Housing | 49189-15610 |
| Compressor Cover | 49189-55710 |
| Turbine Housing AR | 8.5 |
Every turbocharger passes dynamic balancing test, high speed CHRA dynamic balancing test and functional test to garantee the performance
